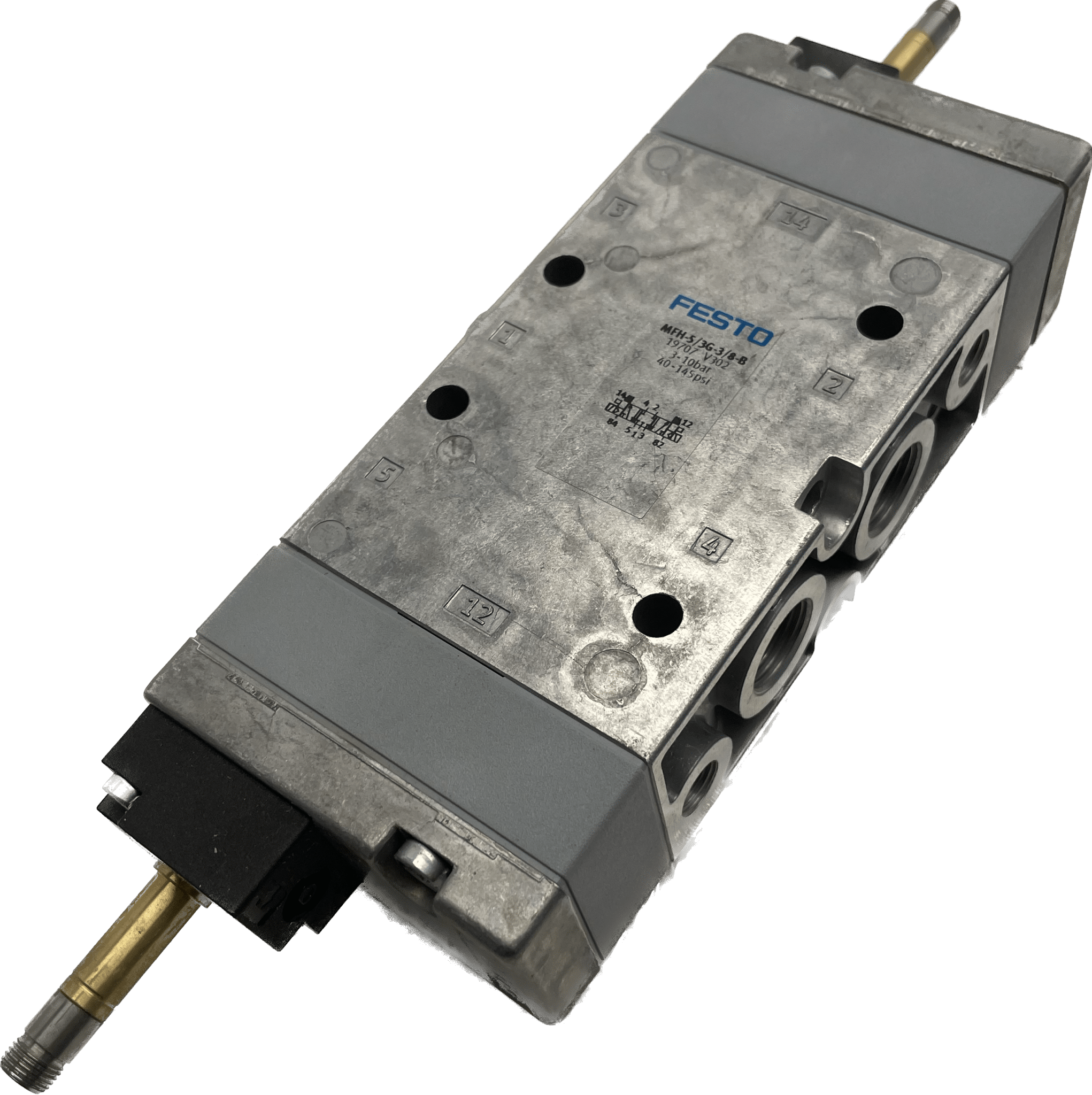

Festo Solenoid valve MFH-5/3G-3/8-B

Party
unused stock
magnetic valve
MFH-5/3G-3/8-B
19707
GTIN 4052568003623
Valve function
5/3 closed
Actuation type
electric
Width
40 mm
Normal nominal flow
2200 l/min
Pneumatic work connection
G3/8
operating pressure
0.3 MPa ... 1 MPa
operating pressure
3 bar ... 10 bar
Structural design
Piston slide
Reset type
mechanical spring
Nominal diameter
12 mm
Grid dimension
41 mm
Exhaust air function
throttleable
Sealing principle
soft
Installation position
any
Manual override
tentative
Tax type
pre-controlled
Control air supply
intern
Flow direction
not reversible
Symbol
00991033
Coverage
positive coverage
Max. switching frequency
3 Hz
Switching time off
80 ms
Switching time on
24 ms
Max. positive test pulse at 0 signal
2200 µs
Max. negative test pulse with 1 signal
3700 µs
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
1 - low corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Storage temperature
-40 °C ... 60 °C
Medium temperature
-10 °C ... 60 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
780 g
Electrical connection
via F-coil, to be ordered separately
Mounting type
optional:
on PR bar
with through hole
Control exhaust air connection 82
M5
Control exhaust air connection 84
M5
Pneumatic connection 1
G3/8
Pneumatic connection 2
G3/8
Pneumatic connection 3
G3/8
Pneumatic connection 4
G3/8
Pneumatic connection 5
G3/8
Material note
RoHS konform
Material seals
NBR
Housing material
Aluminium die casting
