Festo DNAGF-20-15-P-A554222

unused stock

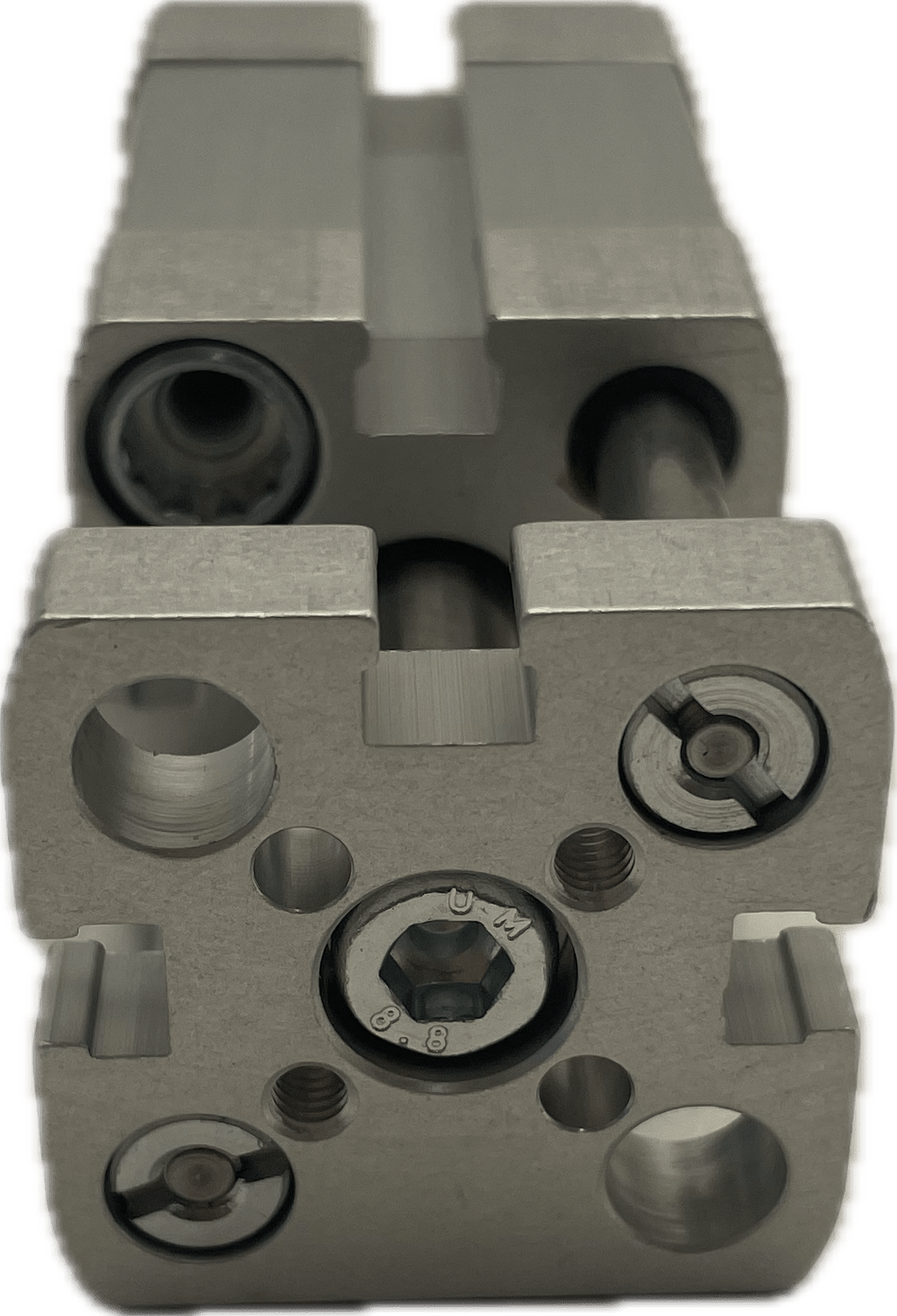

Compact cylinder
ADNGF-20-15-P-A
554222
GTIN 4052568198503
Hub
15 mm
Kolben-Ø
20 mm
Based on standard
ISO 21287
damping
elastic damping rings/plates on both sides
Installation position
any
Structural design
Pistons
Piston rod
Profilrohr
Position detection
for proximity switches
Anti-twist device/guide
Guide rod with yoke
operating pressure
0.15 MPa ... 1 MPa
operating pressure
1.5 bar ... 10 bar
functionality
double-acting
Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Note on the operating/control medium
Oiled operation possible (required for further operation)
Korrosionsbeständigkeitsklasse KBK
2 - moderate corrosion stress
LABS compliance
VDMA24364-B1/B2-L
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.2 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return
141 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), forward
188 N
Moving mass at 0 mm stroke
60 g
Additional moving mass per 10 mm stroke
1
