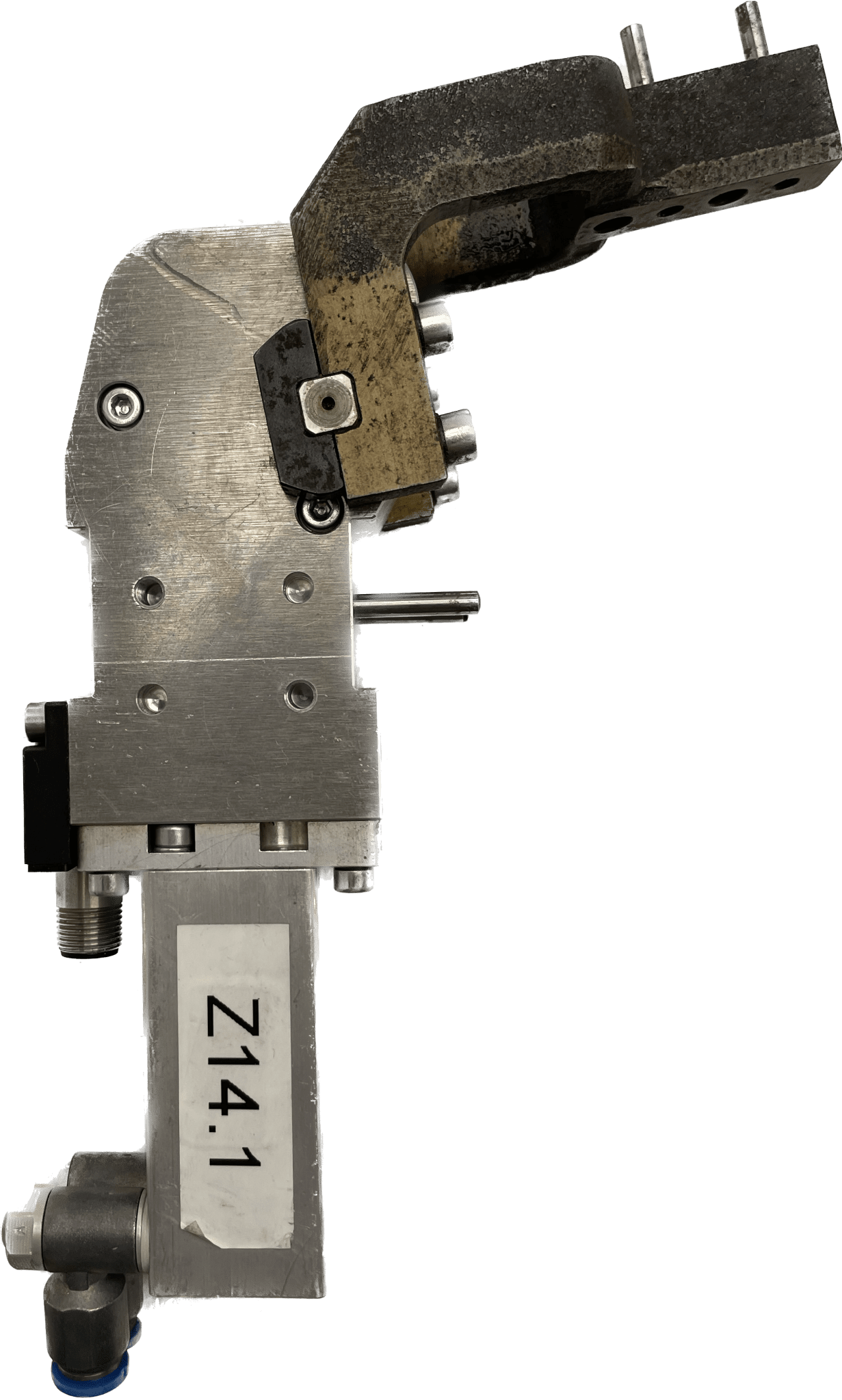

Destaco 82L2G-203B700

I highlight
needed
82L2G-203B700
Area of ​​application: Clamping, holding, gripping and positioning sheets and other parts in devices and handling systems. The clamps with additional hand lever operation are particularly suitable for sensitive insertion and clamping of parts
Maximum holding torque (Nm)
75
Air consumption per double stroke at 5 bar (dm³)
0.4
Tightening torque at 5 bar (Nm)
25
Cylinder diameter (mm)
25
Weight (kg)
1
Product Type
Power clamp
Clamping arm design
U-clamping arms (central)
Opening angle (degrees)
105
Connection thread
G 1/8
283-HTS_TARIFF_CODE
84798997
Hand lever
No
Product function
pneumatic-power-clamps-82l-2
Product range
82L-2
