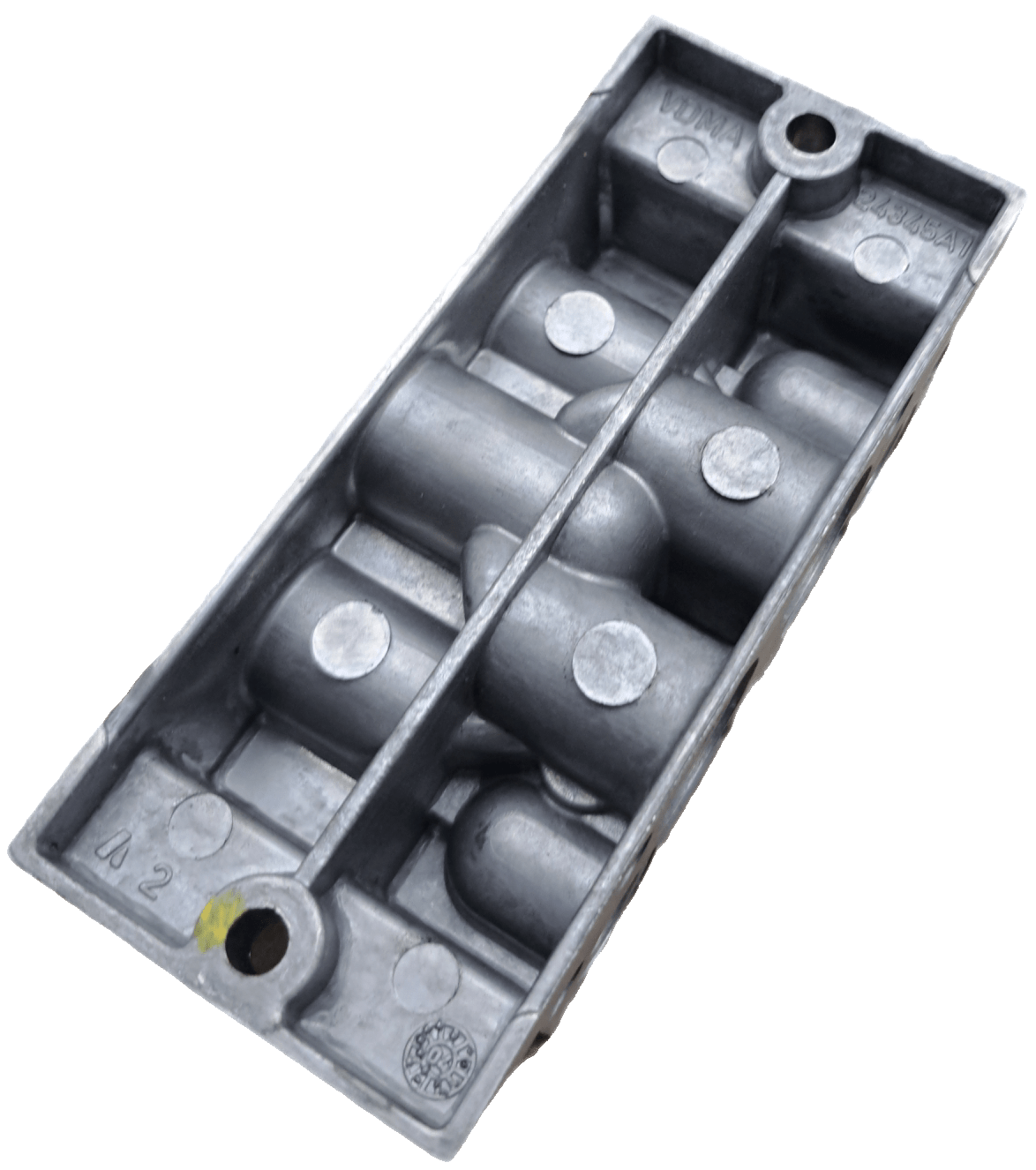

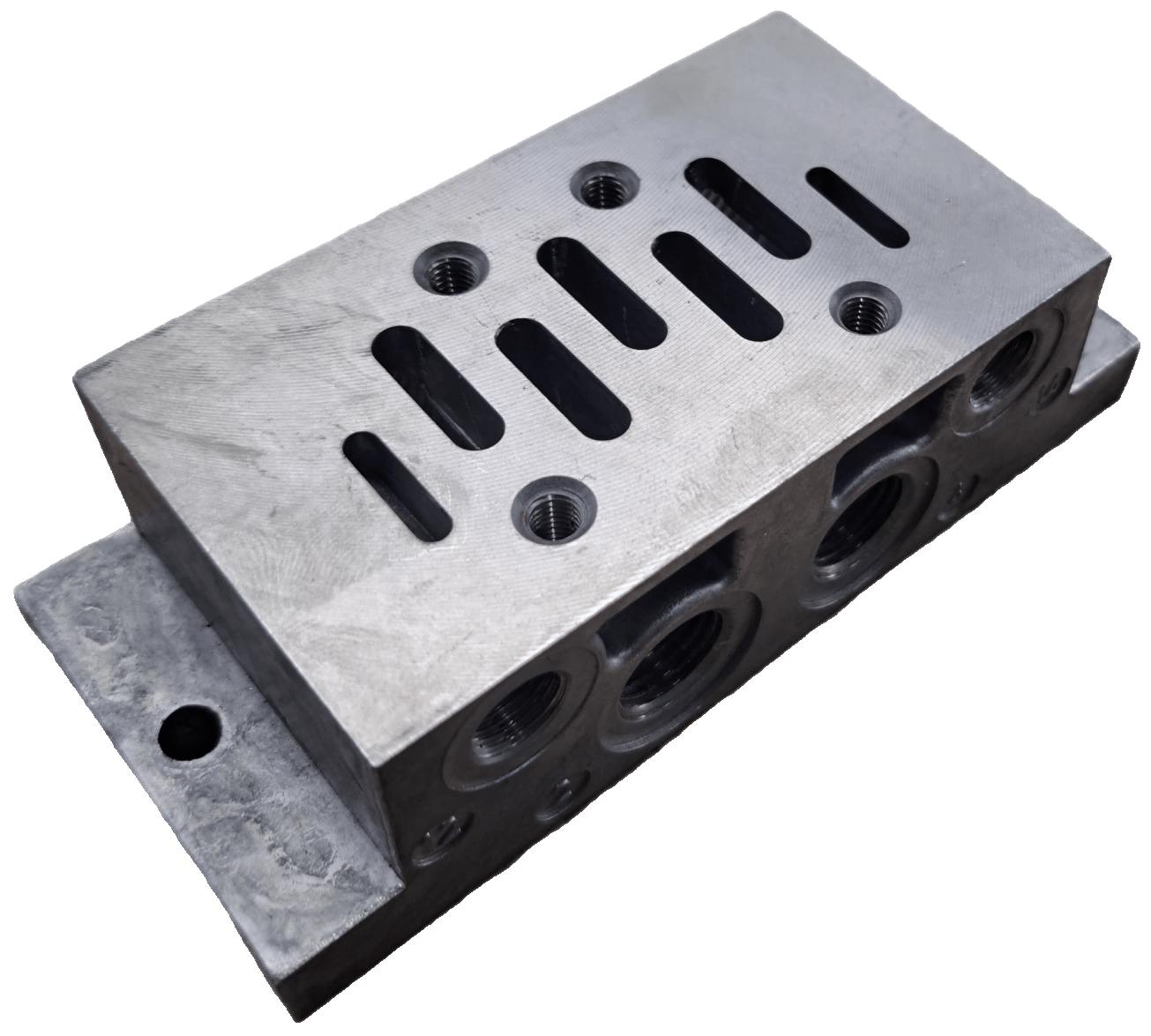

Bosch / Aventics single connection plate, threaded connections on the side / 1825503143
Registrieren um Preise zu sehen
plus VAT. plus shipping and handling
unused stock

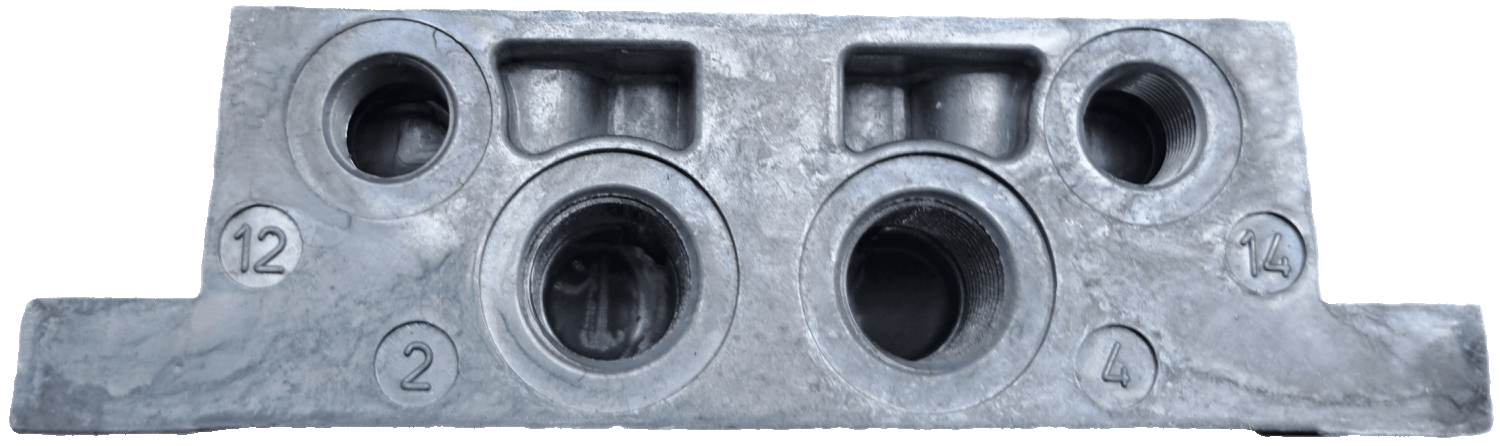

Single connection plate, threaded connections on the side
G1/4 SIDE PORT
TypeBase plate
Direction pneum. Connection (1)Side
Compressed air connection 1G 1/4
Direction pneum. Connection (2,4) on the side
Compressed air connection 2 / 4G 1/4
Direction pneum. Connection (3.5) on the side
Connection 3 / 5G 1/4
Vent type connections separated
Vent (3.5) with ducted vent (3/5)
Direction pneum. Connection (12)Side
Compressed air connection 12G 1/8
Direction pneum. Connection (14)Side
Compressed air connection 14G 1/8
SizeISO 1
NormenISO 5599-1
Operating pressure min.-0.95 bar
Operating pressure max.16 bar
Ambient temperature min. -25 °C
Ambient temperature max.70 °C
Mediumstemperatur min.-25 °C
Mediumstemperatur max.70 °C
MediumCompressed air
Number of valve positions max.1
Rastermaß48 mm
Download Data Sheet
