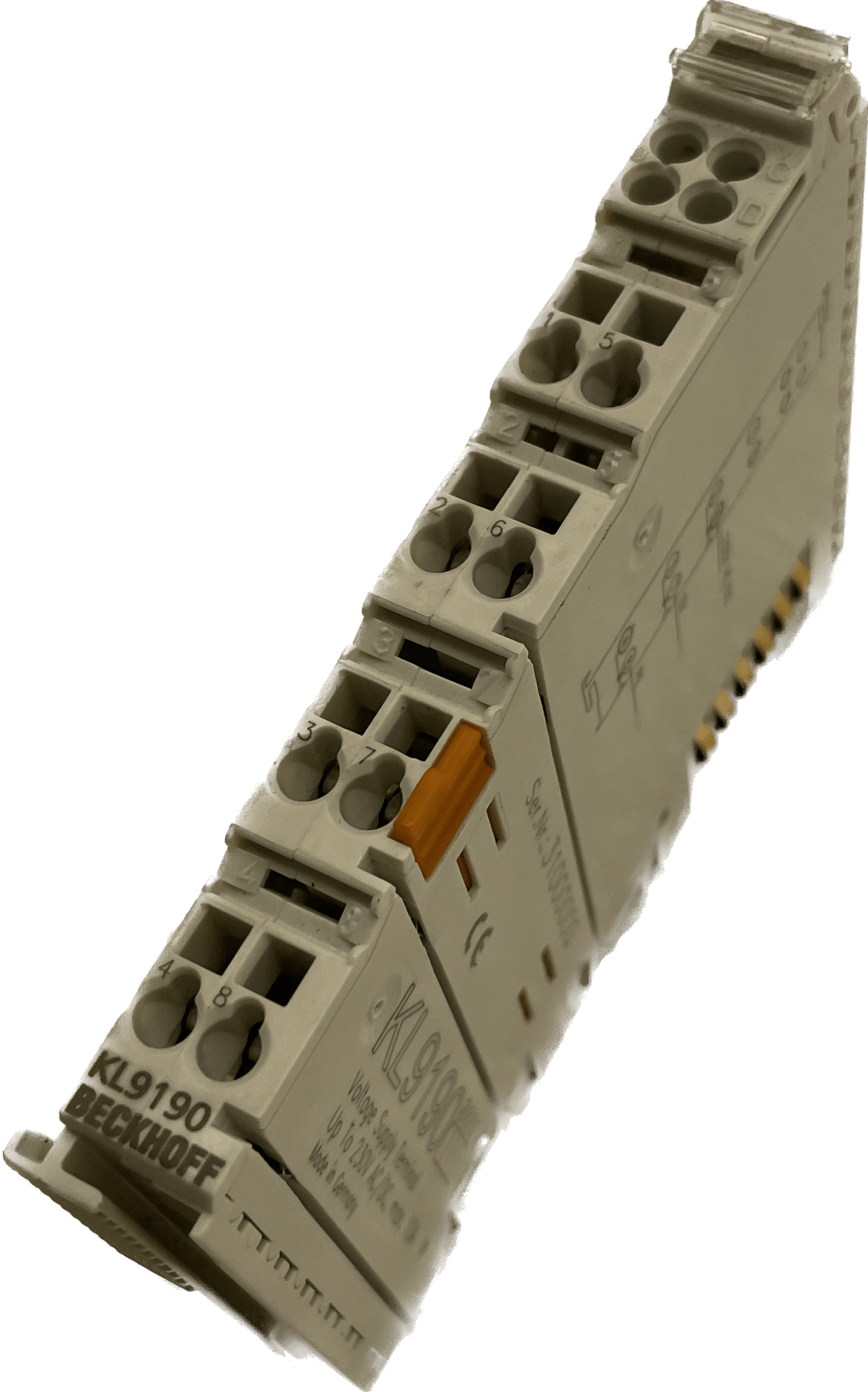

Beckhoff power supply terminal KL9190


SKU: KL9190
Offer€4,17

plus VAT. plus shipping and handling

Only 3 items left
American Express Apple Pay Google Pay KlarnaMaestroMastercardPayPalShop Pay Union PayVisa
Beckhoff
needed
31000000
The KL9190 power supply terminal allows you to set up different potential groups with any voltage up to 230 V AC.
Current load = 10 A
Nominal voltage any
Potential separation yes
PE-Kontakt and
Re-feed yes
Possibility of connection to
Power contact additional 1
K-Bus looped through yes
Width in process image 0
Case width 12 mm
Arranging on bus terminals with power contact, yes
Yes, connecting to bus terminals without power contact
Operating/storage temperature 0…+55 °C/-25…+85 °C
Pluggable wiring for all KSxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
Download Data Sheet
