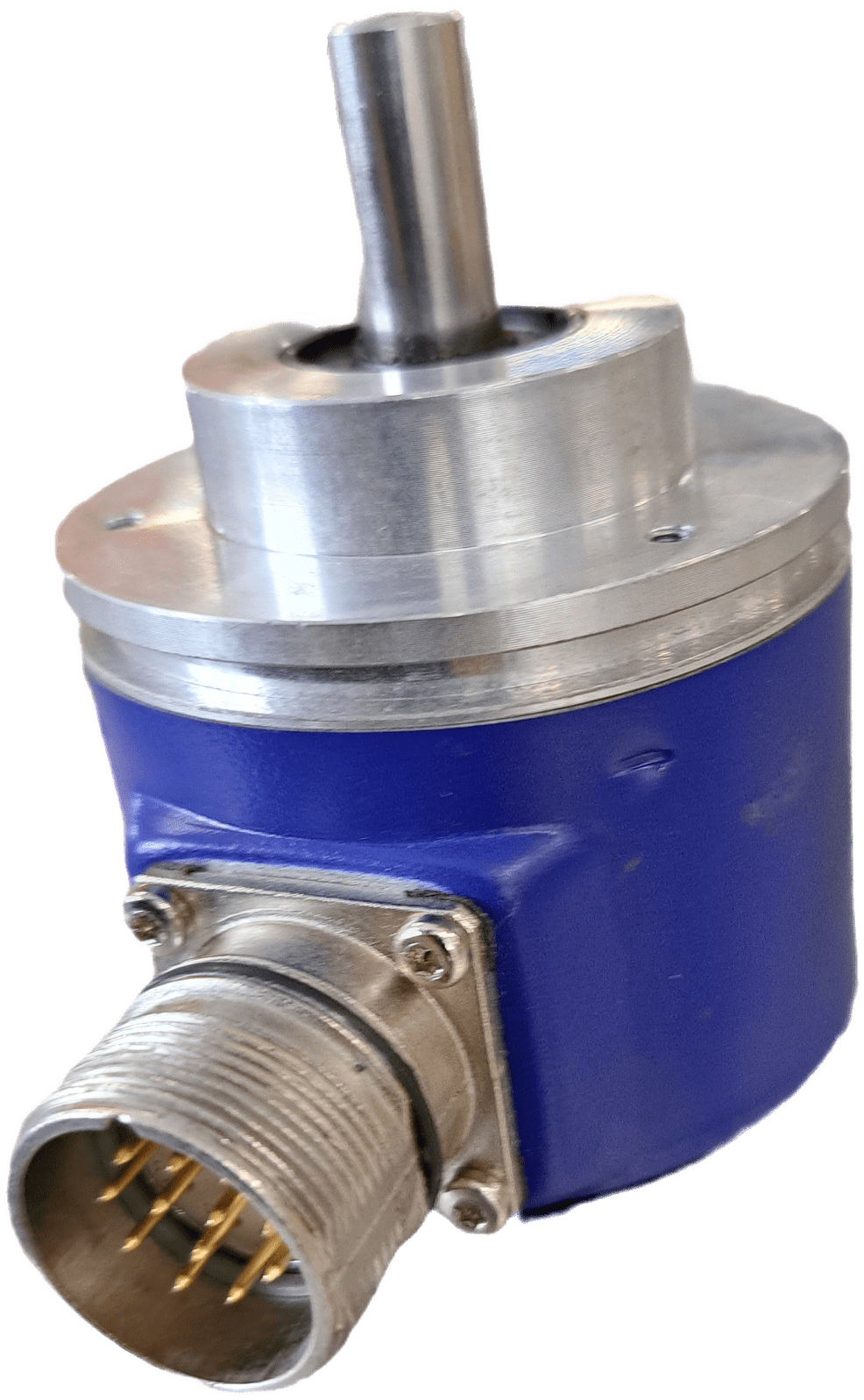

Baumer GA240.A33A105 Absolute encoder GA240 - SSI
plus VAT. plus shipping and handling
unused stock
Absolute encoder
GA240 – SSI
Solid shaft with clamping flange
Encoder Singleturn / SSI
Optical detection method
Resolution: 14 bit
Clamp flange
Electronic zero point adjustment
5 VDC ±10 %
Reverse polarity protection: No (5 VDC)
Consumption without load: =50 mA (24 VDC)
Initialization time type: 20 ms after power on
Interface: SSI
Function: Singleturn
Steps per revolution: =16384 / 14 bits
Absolute accuracy: ±0.025°
Detection method: Optical
Code: Gray or binary
Code sequence: CW/CCW coded depending on the connection
Inputs: SSI clock control signals UP/DOWN inv. and zero
Output stages:
SSI data: Linedriver RS422
Diagnostic outputs push-pull
Inkremental: Push-Pull oder Linedriver RS422
Incremental output: 2048 pulses A90°B + inverted
Immunity: EN 61000-6-2
Emitted interference: EN 61000-6-4
Diagnostic function: self-diagnosis
Approval: UL approval / E63076
Size (flange): ø58 mm
Shaft type: ø10 mm solid shaft
Flange: clamp flange
Protection class EN 60529:
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
Select options
Baumer GA240.A33A105 Absolute encoder GA240 - SSI
Offer€416,50
Regular price
