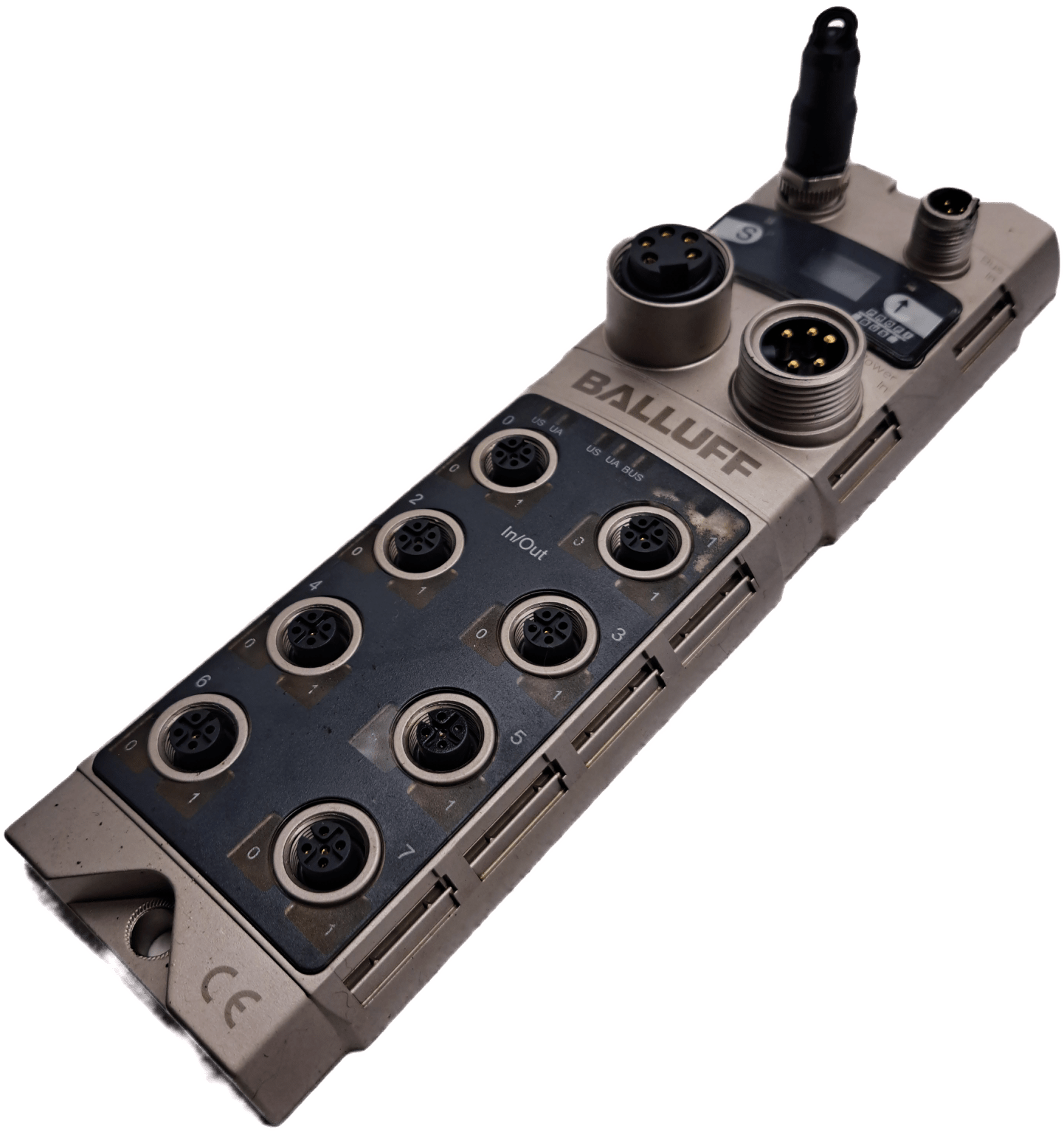

Balluff BNI0047 network modules for Profibus

needed
Network modules for Profibus
BNI PBS-302-101-Z001
interface
Profibus DP EN 50170
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1 connector, 5-pin, B-coded
Connection (COM 2)
M12x1 socket, 5-pin, B-coded
Connection (power supply IN)
7/8" connector, 5-pin
Connection (power supply OUT)
7/8" socket, 5-pin
Connection slots
8x M12x1 socket, 5-pin, A-coded
digital inputs
16x PNP, Typ2
Digital outputs
16x PNP
Inputs/outputs configurable
and
Output current max.
2 A
Total current US, sensor
9.0 A
Summenstrom UA, Prosecutor
9.0 A
Housing material
Zinc, die-cast
dimension
68 x 37.9 x 224 mm
Ambient temperature
-5...70 °C
Protection class
IP67
