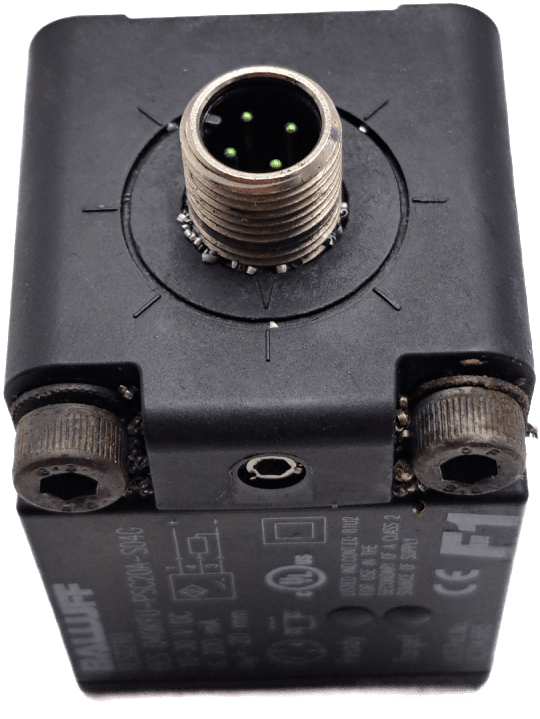

Balluff BES021U Inductive Factor 1 Sensors
plus VAT. plus shipping and handling
needed
Inductive factor 1 sensors
BES Q40KFU-PSC20A-S04G
dimension
40 x 40 x 62 mm
Design
40x40
Installation
flush
Range
20 mm
Switching output
PNP normally open (NO)
Switching frequency
400 Hz
Housing material
PBT
Active area, material
PBT
Connection
Connector, M12x1 plug, 4-pin
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
Magnetfeldfest
magnetfeldfest (AC/DC)
Protection class
IP67
Approval/Conformity
THIS
UKCA
cULus
WEEE
Additional features
Factor 1
Spezifikationen
Diese Informationen werden zeitnah ergänzt.
Einsatzbereiche
Diese Informationen werden zeitnah ergänzt.
Lieferumfang
Diese Informationen werden zeitnah ergänzt.
Download Data Sheet
