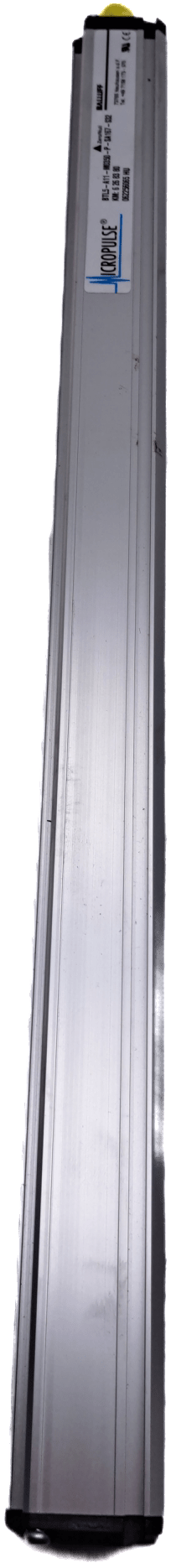

Balluff BTL5-A11-M0350-P-SA167-S32

Balluff
Unused stock
BTL02R7
Magnetostriktive Positionsmesssysteme in Profilbauform
Form
Series Profile
Fastening
Mounting brackets
Housing material
Anodized aluminum
Position sensors, number max.
1
Connection
Connector, M16x0.75, 8-pin
Analog output
Analogue, voltage 0…10 V
Analog, voltage 10…0 V
Measuring range
350 mm
resolution
= 2 µm
Linearity deviation max.
±100 µm
Repeatability
= 0.1 mV
Operating voltage Ub
20...28 VDC
Ambient temperature
-40...85 °C
Protection class
IP67
Approval/Conformity
THIS
UKCA
cULus
WEEE
