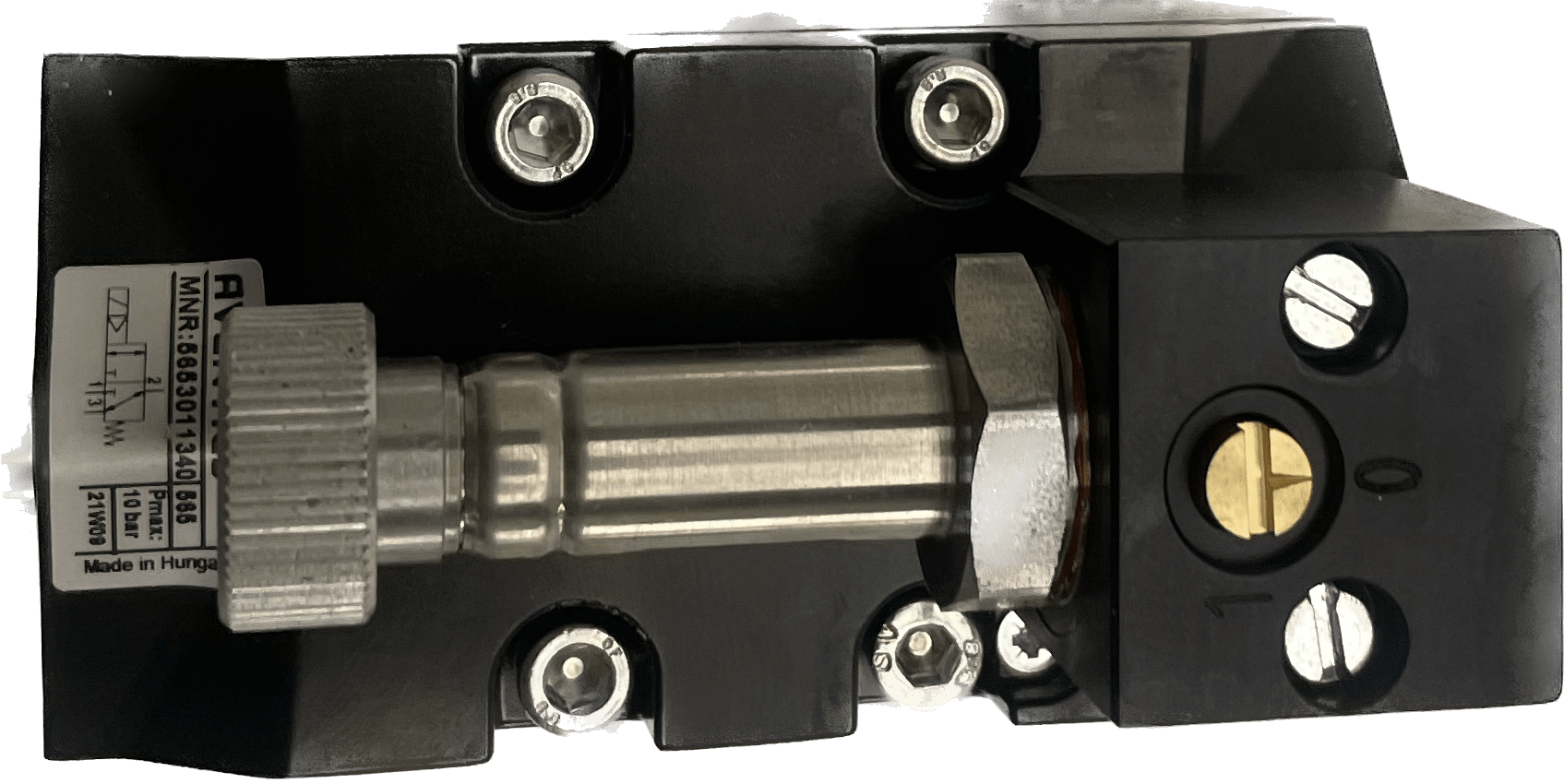

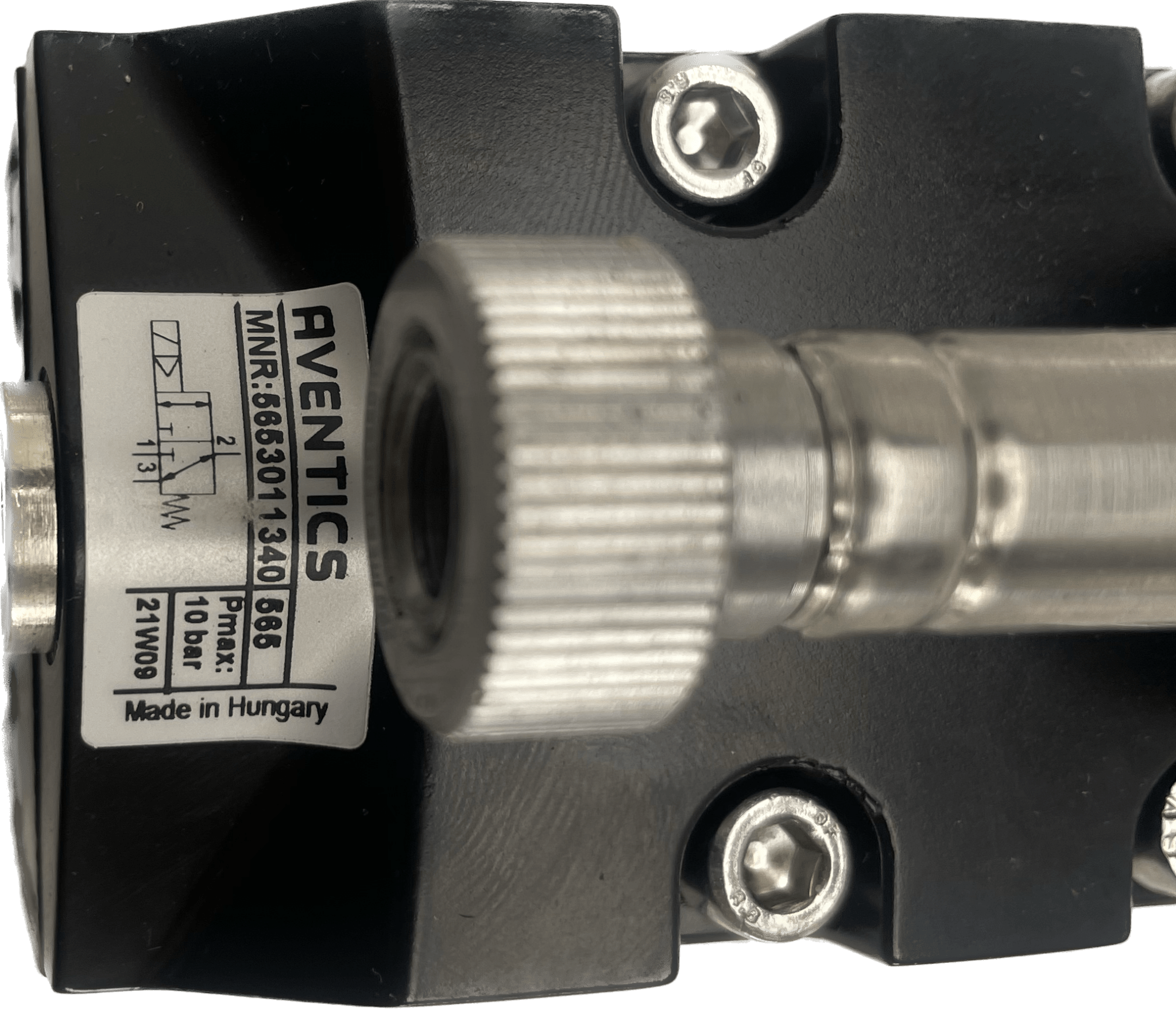

Aventics V565-3/2NC-SR-024DC

Aventics
unused stock
V565-3/2NC-SR-024DC
MR:5653011340
Product information "Aventics 3/2-way valve V565-3/2NC-SR"
Aventics 3/2-Wegeventil, Serie 565

Technical data

Design: Seat valve
Compressed air connection: G 1/2
Flow rate: 4240 l/min
Operating pressure min./max.: -1 bar / 10 bar
Control pressure min./max.: 4 bar / 10 bar
Ambient temperature min./max.: -20°C / +70°C
Mediumstemperatur min./max.: -20°C / +70°C
Medium: compressed air
Max. particle size: 5 µm
Oil content of the compressed air: 0 mg/m³ - 5 mg/m³

Materials

Housing: aluminum
Seals: Acrylonitrile butadiene styrene

Technical notes

-The minimum control pressure must not be fallen below, otherwise incorrect switching and possibly valve failure can occur!
-The pressure dew point must be at least 15 °C below the ambient and medium temperature and may be a maximum of 3 °C.
-The oil content of the compressed air must remain constant over the entire service life.
-Only use oils approved by AVENTICS.
